Machinery Repair AC Cable Crimping Machine Rubber Hose Assembly Fabricating

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-51CG

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : 51CG AC Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 800*640*1300mm

Weight : 320Kg

Contact Now

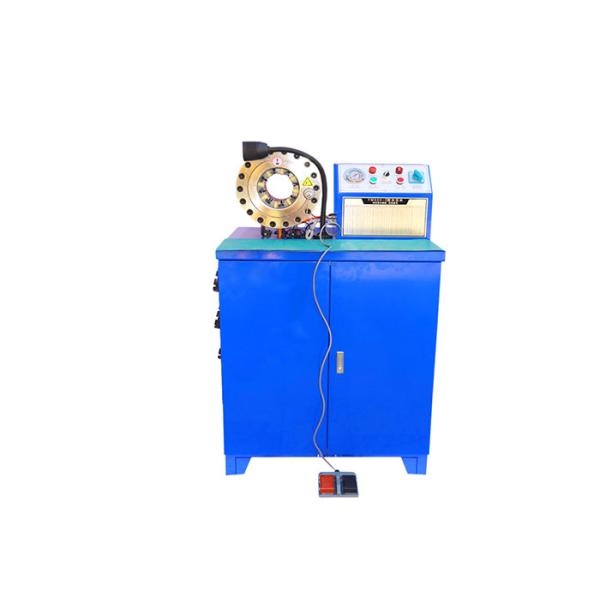

REPAIR AC HOSE CRIMPING MACHINE MS-51CG

DESCRIPTION

MS-51CG air conditioner hose crimper machine is famous for its large productivity. It is capable of crimping high pressure hydraulic oil hose on construction and engineering machine, and also swaging the metal tube size, pressing the wire ropes for safety use.

MAIN ADVANTAGES

1. One piece design cylinder head, prevent pressure lose;

2. Foot pedal makes the crimping work more flexible;

3. Working lamp, improve the safety level;

4. Die sets with high temperature heat processing, high hardness;

5. Simple structure and design, easy maintenance and low cost.

TECHNICAL DATA

Model

MS-51CG AC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)

Machinery Repair AC Cable Crimping Machine Rubber Hose Assembly Fabricating

51 SERIES HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 100

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;
