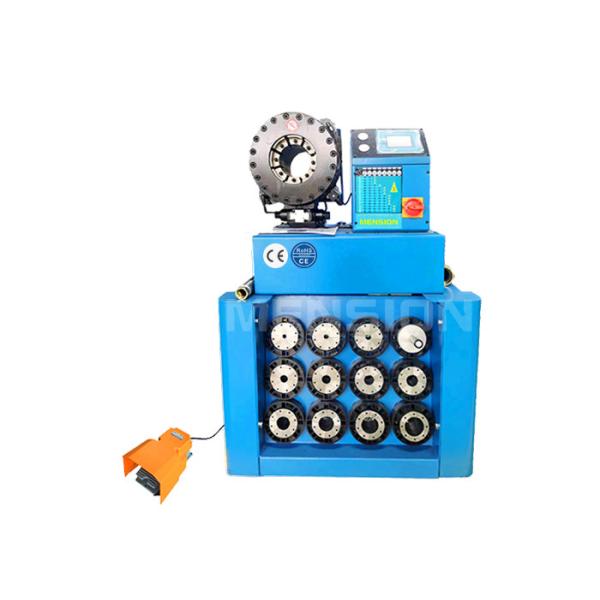

HIGH PRESSURE HOSE CRIMPER MS-NC130-I
DESCRIPTION
MS-NC130-I high pressure hose crimping machine is suitable for hydraulic high pressure rubber hose assembly fabrocating, brake line pipes pressing, air conditioner hose crimping. It is widely used globally in the industries like car automotive system, marine, construction machinery, engineering machinery, etc.
ADVANTAGES
1. Pedal switch control the closing of the die sets, free hands for holding hose
2. Famous PLC control system with stable performance
3. Unique hydraulic cylinder design, low maintenance cost
4. Soft screen panel, easy and convenient
5. Quick mold change to improve the efficiency
TECHNICAL DATA
| Model | MS-NC130-I Hose Crimper |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC Digital Control |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 HOSE CRIMPER DIE SETS
| Die No. # | Crimping (mm) | Length (mm) |
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 55 |
| 16 | 16.0 - 19.0 | 55 |
| 19 | 19.0 - 22.0 | 55 |
| 22 | 22.0 - 26.0 | 70 |
| 26 | 26.0 - 30.0 | 70 |
| 30 | 30.0 - 34.0 | 70 |
| 34 | 34.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 63.0 | 100 |
| 63 | 63.0 - 69.0 | 110 |
| 69 | 69.0 - 74.0 | 110 |
| 74* | 74.0 - 78.0 | 110 |
| 78* | 78.0 - 87.0 | 110 |
NOTICE
• " * " for non standard mold
• Max. opening is the working stroke of cylinder
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V, 440V are availbale
• MS control as optional
DEATILED PICTURES
► Advanced design for cylinder and master die, enable high force and synchronous movement
► 13 die sets place in the special rack which can also let the main machine part mounted
► PLC control system with high intelligent level, showing crimping diameter actural time movement
SAMPLES DETAILS
