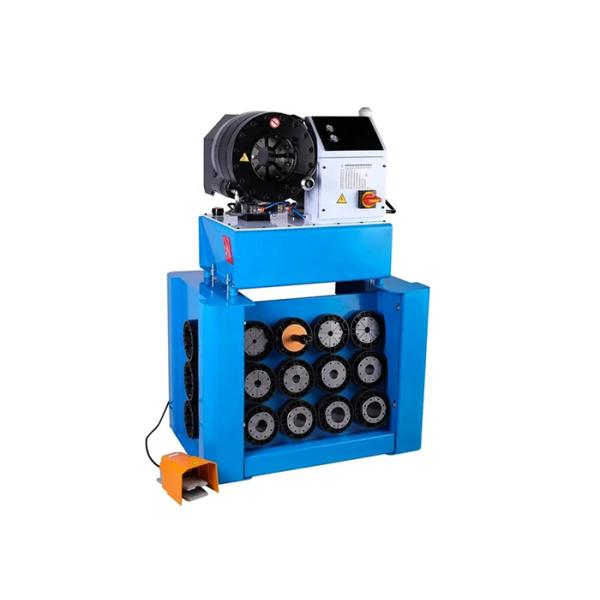

High Pressure Hydraulic Hose Crimper Hose Crimping Machine Factory

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : P32MS

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2.5inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

Product Name : P32MS Hose Crimper

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 650*550*1360mm

Weight : 310Kg

Contact Now

2.5 INCH HYDRAULIC HOSE CRIMPER MACHINE P32MS

DESCRIPTION

MS-E130 (now P32MS) pipe pressing machine support hydraulic high pressure hose up to 4 layers 2-1/2'' and industrial hose up to 3'' making. With large working stroke, and Ergonomic design. It is a Finn power style hose crimper with imported spares from famous brand, durable operating performance.

ADVANTAGES

► High efficiency

► Good product consistancy

► Simple operation

► High precision

TECHNICAL DATA

Model

P32MS Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)

High Pressure Hydraulic Hose Crimper Hose Crimping Machine Factory

P32MS CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6 *

6 ... 8mm

 55mm

8 *

8 ... 10mm

 55mm

10 *

10 ... 12mm

 55mm

12 *

12 ... 14mm

 55mm

14

14 ... 16mm

 55mm

16

16 ... 19mm

 55mm

19

19 ... 22mm

 55mm

22

22 ... 26mm

 70mm

26

26 ... 30mm

 70mm

30

30 ... 34mm

 70mm

34

34 ... 39mm

 75mm

39

39 ... 45mm

 75mm

45

45 ... 51mm

 90mm

51

51 ... 57mm

 90mm

57

57 ... 63mm

 100mm

63

63 ... 69mm

 110mm

69

69 ... 74mm

 110mm
74 * 74 ... 78mm 110mm
78 * 78 ... 87mm 110mm

NOTE

• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

• UC control system

• Position limit device
